X-JET M5 Kits

SKU XJETM5-09K
by Xjet
$0.00 - $0.00
$0.00
$268.95
$268.95 - $268.95
$268.95

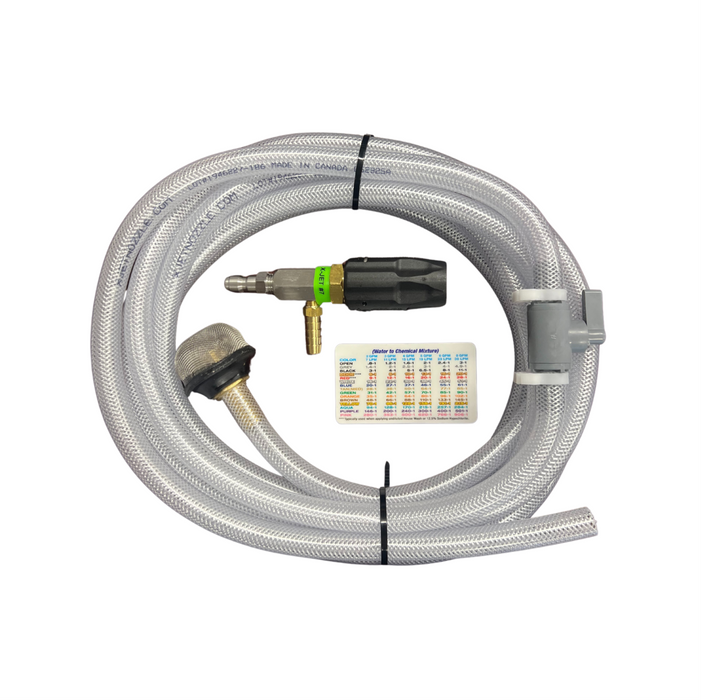

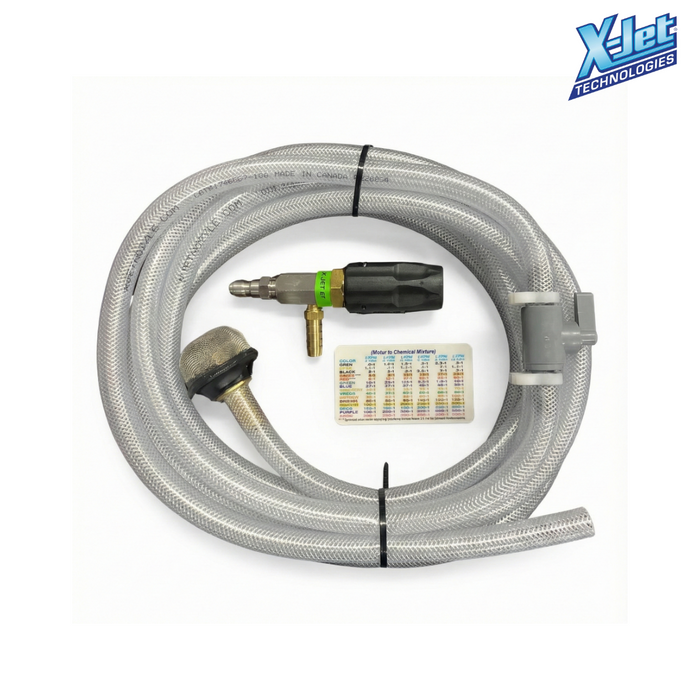

The X-Jet M5 Kits combine X-Jet Technologies’ flagship adjustable external-injection nozzle with a complete proportioner kit—so you can dial in any spray pattern from 0° to 60° and pull detergent straight from your tank without running it through your pump, hose, or fittings xjetnozzle.comamericanpressureinc.com.

Key Features

  • Adjustable 0°–60° Spray Pattern
    Simply twist the anodized-aluminum nozzle body to shift seamlessly from a pinpoint pencil stream to a wide fan—no tip swaps required xjetnozzle.com.

  • True External Injection
    Keeps harsh chemicals out of your pump, wand, and fittings by injecting and proportioning outside of your pressure washer’s plumbing xjetnozzle.com.

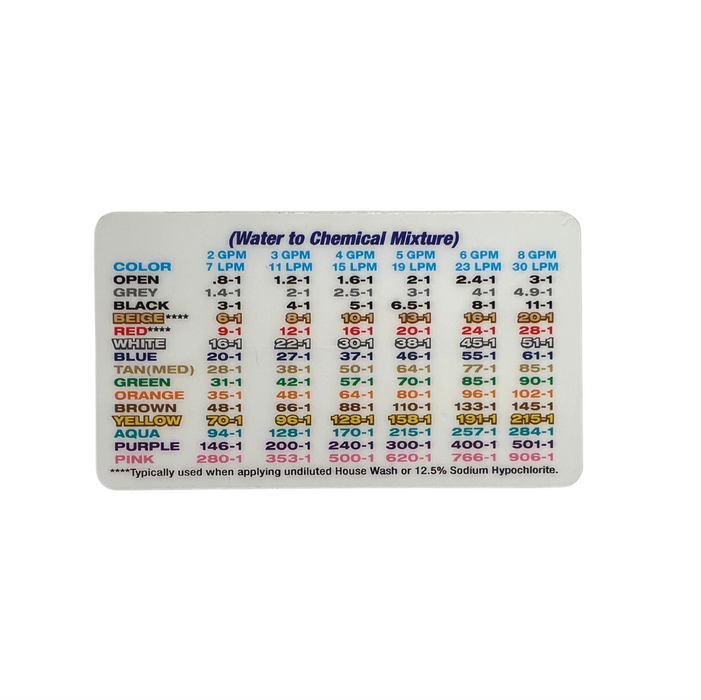

  • 14-Tip Color-Coded Proportioner Set
    Precision-drilled nozzles deliver mix ratios from 0.3 % to 6 %, giving you exact chemical control for every surface xjetnozzle.com.

  • 15 ft Suction Hose Assembly
    Includes quick-connect inlet, inline shut-off ball valve, and stainless-steel tank-screen filter to ensure a consistent, clog-free feed xjetnozzle.com.

  • Extended Reach
    Delivers cleaning solution up to 40 ft high (model-dependent), so you can wash second-story windows, solar panels, and siding from the ground xjetnozzle.com.

Benefits

  • Equipment Protection: By bypassing your pump and hoses, you extend their life and reduce downtime.

  • Rapid Workflow: Twist to change pattern or switch from wash to rinse in seconds—no climbing or tip changes.

  • Consistent Coverage: Uniform chemical proportioning yields streak-free results and minimizes detergent waste.

  • Professional Durability: Corrosion-resistant seals and anodized body stand up to frequent use and harsh detergents.

Technical Specifications

  • Pressure Range: 2,000–4,500 PSI (kit variant dependent) amazon.com

  • Flow-Rate Models:

    • #7: 2.0–2.5 GPM

    • #9: 3.0–3.5 GPM

    • #13: 4.0–4.5 GPM

    • #16: 5.0–6.5 GPM

    • #20: 7.0–8.0 GPM

    • #25: 8.5+ GPM amazon.com

  • Maximum Temperature: 190 °F americanpressureinc.com

  • Inlet Connection: ¼″ quick-connect plug

  • Chemical Port: ⅛″ MPT × ⅜″ hose barb

  • Approx. Kit Weight: 4 lbs
